Admaflex Discovery a desktop ceramic 3D printer that can grow with you

Overview

Discovery logo

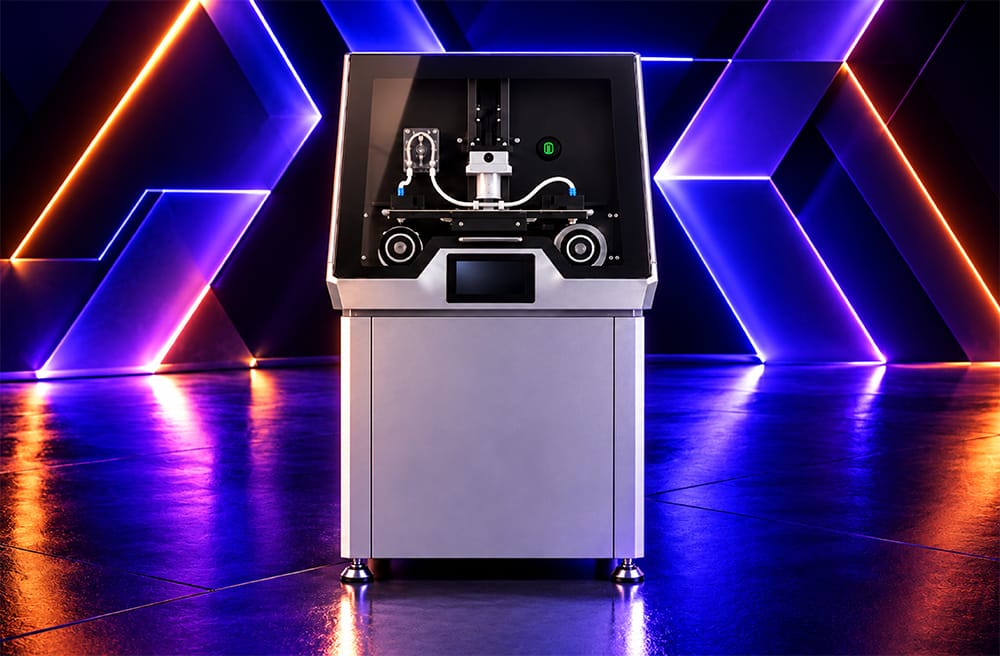

As the name says, the Discovery is made for exploring and first stage manufacturing of ceramic 3D printing. Its compact desktop form factor gives universities, research institutes and R&D teams direct access to Admatec’s 15+ years of ceramic 3D printing experience, right at a desk. It is aimed at users who know ceramic 3D printing is relevant to their business, have defined the first potential projects, and are ready to discover AM Ceramics.

Request a quote
Admaflex Discovery technical specifications
TechnologyDigital Light Processing (DLP), also known as VAT Photo Polymerization (VPP), or Stereo Lithography based Ceramic Additive Manufacturing (LCM)
Printing build volume96 x 54 x 110 mm
3.78 x 2.12 x 4.22 inch
Image resolution50 µm
Layer thickness20 to 200 µm depending on type of material
Build speed (layers/h)Up to 150 layers per hour
Build platform fixtureZero-Point Clamping system
Machine dimension700 x 560 x 525 mm
27.6 x 22 x 20.7 inch
Supported materialsAl2O3, Silica, Base resin with and without photo initiator
Power requirements110 / 230 Volt
10 / 5 Ampere
Required working temperature22 +/- 5 °C
Required working humidity< 40%
File compatibilitySLC, STL
ConnectivityEthernet connector – for standalone operation
WiFi – built-in dual-band 2.4 GHz and 5.0 GHz 802.11ac Wi-Fi (Wi-Fi 5)
Standard system features
  • Process webcam
  • VAT for polymer (low viscous material) printing
  • UI support on laptop / PC for setting and real-time monitoring

Specifications per October 2026 – subject to change

Contact us for a brochure
Discovery

Upgradeable

An investment that keeps its value

The Discovery is built around customer feedback that want to continue to utilize their investments while requirements advance. Discovery does exactly that. The upgrade will increase the building envelope, have higher projection resolutions, more power, and the ability to work with two resolution settings.

After the upgrade the system becomes a standalone model. Customers can start exploring at a low entry price and expand as their applications mature, continuing to use the system they already know.

Video

Introducing the Admaflex Technology

Process

From design to manufacturing
of functional parts with form freedom

Admatec supplies solutions for 3D printing, debinding and sintering, and provides training to help customers achieve the best results during each step of the process.

  • Customer testimonials

    “The parts 3D printed with the Admaflex 130 meet the required fine features needed for our R&D work.”

    Raymond Wei

  • Customer testimonials

    “The Admatec 3D printer has taken the investment casting prototype manufacturing to the next level. Its simplicity and ease of operation are unmatched compared to traditional pattern 3D printing.”

    Jack Ziemba

  • Customer testimonials

    “Innovative approach for 3D printing of ceramics, not only for academia but also for the production of small series. It performs well on mid-size series for small parts too. The cost-effectiveness makes the process suitable for more applications, leading to more scale of the process as a whole, which will have a further positive impact on costs.”

    Alex Hilgenberg

  • Customer testimonials

    “The Admaflex 130 is world’s first class ceramic 3D printer! The operation is easy and practical in use for material testing and performing research.”

    Li Hongshu Lee

  • Customer testimonials

    “The MEMTI group already had experience with several commercial available 3D printers using the Digital Light Processing (DLP) technology. To take the next step in ceramic material development and production, the group invested in the Admaflex130 3D printer to develop new ceramic materials for the production of components with complex features.”

    Prof. Alberto Ortona

Learn more:

The admaflex technology
